The KICKER CompQ™ Subwoofer delivers on all of the power, capacity and performance of its square counterpart L7™, only utilizing a round basket and cone.
model: 51CWQ104
| Thiele/Small Parameters |
| 51CWQ104 T/S Parameters |
| Product Dimension Sheet |
| 51CWQ10 Dimensions |
| CNC Files |
| Comp6.75-15.DXF - for subwoofer hole cutouts | 3D Print Files |
| 52GR10-Spacer-CWQ.STL - 3D-printing of grille spacers |
| Woofer (in, mm) |
| 10, 25 |
| Impedance (Ohms) |
| 4 DVC |
| Recommended Amp Power (watts RMS) |
| 400-800 |
| Frequency Response (Hz) |
| 24-100 |
| Sensitivity (1W, 1m) |
| 84.5 |
| Xmax (mm) |
| 19.7 |
| Mounting Depth (in, mm) |
| 6-3/8, 16.2 |
| Mounting Diameter (in, mm) |
| 9-3/16, 23.4 |
|
Sealed Enclosure Specs
|
| Sealed Enclosure Volume Min (cu. ft., L) |
| 0.66, 18.7 |
|
Panel Dimensions for Minimum Sealed Enclosures using 3/4” (1.9cm) thick MDF
|
| Box Volume [ft³, L] |
.66 (18.7) |
| Panel A [in, cm] |
| 12x12, 30.5x30.5 |
| Panel B [in, cm] |
| 12x10.5, 30.5x26.7 |
| Panel C [in, cm] |
| 10.5x10.5, 26.7x26.7 |
| Sealed Enclosure Volume Max (cu. ft., L) |
| 1.25, 35.4 |
| Vented Enclosure Volume Min (cu. ft., L) |
| 1.25, 35.4 |
| Vented Enclosure Volume Max (cu. ft., L) |
| 2.25, 63.7 |
| Warranty |
| When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of THREE (3) YEARS from date of original purchase. - Complete warranty information here. |

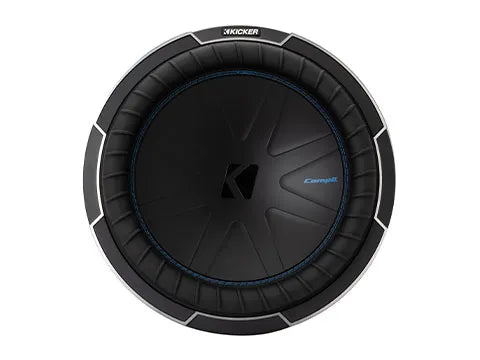

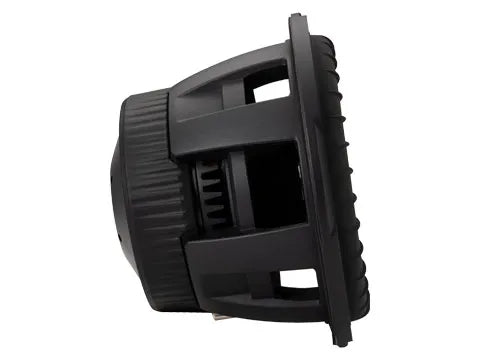

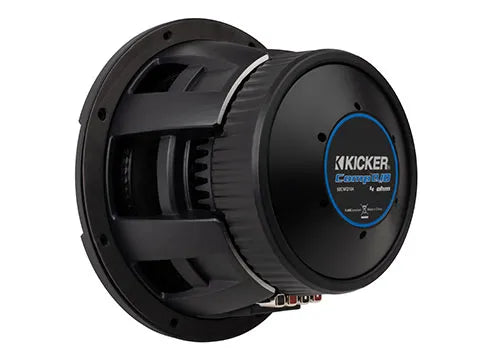

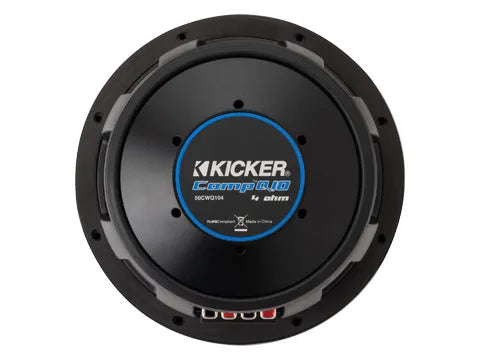

The 10" CompQ 4-Ohm
The CompQ 10" Subwoofer is a perfect selection for strong, tight bass that deliver unparalleled accuracy, with extremely musical bass.
An advanced suspension and heat management system helps to keep the bass powerful, deep and consistent – all without a hint of distortion.
The CompQ 10-Inch Subwoofer works best with a sealed or ported enclosure with 800 watts of recommended power. See below for more details.
