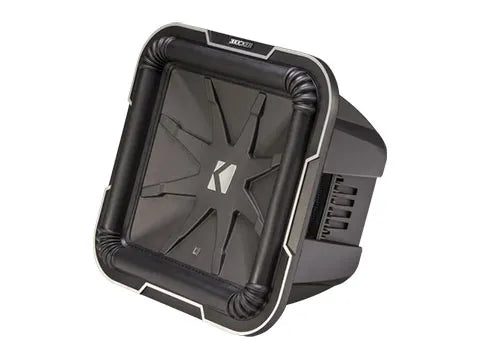

The L7 stands alone as the most unique subwoofer on the market, with a cone shape that is exclusively designed to produce more output.
| Thiele/Small Parameters |
| 41L7124 T/S Parameters |
| 3D Print Files |
| 52GL712-Spacer-41L7.STL - 3D-printing of grille spacers |
| Rated Impedance [Ω] |
| 4 |
| Sensitivity [1W, 1m] |
| 86.9 |
| Frequency Response [Hz] |
| 20 - 100 |
| Recommended Amplifier Power (watts RMS) |
| 900 |
| Outer Frame Dimension [in, cm] |
| 12-9/16, 32 |
| Mounting Depth [in, cm] |
| 7-7/8, 20 |
| Mounting Cutout [in, cm] |
| 11-1/16, 28.1 |
Sealed Enclosure Specs |
| Minimum Sealed Volume ft3 (L) |
| 1 (28.32) |
| Maximum Sealed Volume ft3 (L) |
| 2 (56.64) |
Panel Dimensions for Minimum Sealed Enclosures using 3/4” (1.9cm) thick MDF |
| Box Volume [ft³, L] |
1 (28.32) |
| Panel A [in, cm] |
| 13.5X13.5, 34.3X34.3 |
| Panel B [in, cm] |
| 13.5x12, 34.3x30.5 |
| Panel C [in, cm] |
| 12x12, 30.5x30.5 |
Vented Compact |
| Box Volume, ft³ (L) + port displacement |
| 1.75 (49.6) |
| Port Opening Size, in x in (cm x cm) |
| 2.5x13.25 (6.4x34) |
| Port Length, in (cm) |
| 22.5 (57) |
Vented SQ |
| Box Volume, ft³ (L) + port displacement |
| 3.25 (92) |
| Port Opening Size, in x in (cm x cm) |
| 3x13.25 (7.6x34) |
| Port Length, in (cm) |
| 14.5 (37) |
| Warranty |
| When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of THREE (3) YEARS from date of original purchase. - Complete warranty information here. |
THE NEW L7
The KICKER L7™ Subwoofer again reaches new heights in technology and design, capturing the imaginations of 2015 CES® Innovation Award judges and solidifying itself as the crown jewel among industry subwoofers. For more than a decade, KICKER’s square woofer earned numerous awards including several CES accolades, and the 2015 version once again makes distinctive improvements on its way to another honor.
