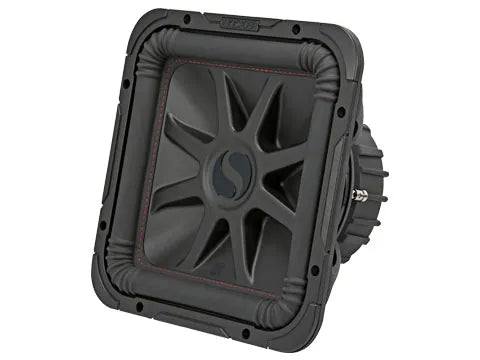

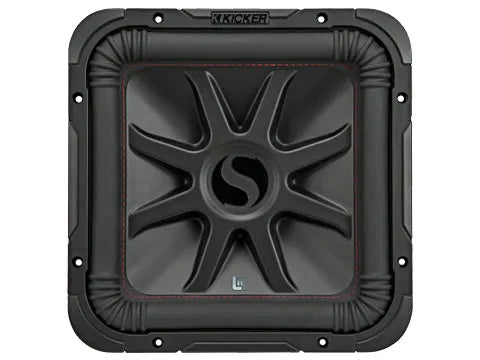

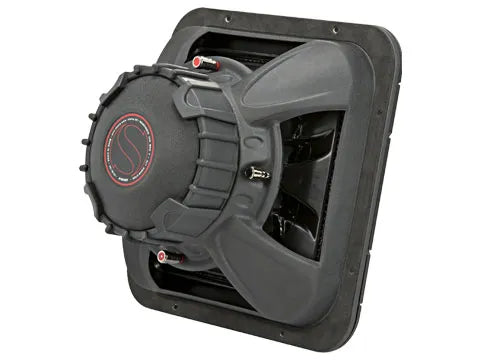

The 12-inch L7R Square Subwoofer moves more air and delivers bigger bass, so you get more bump out of every watt!
| Thiele/Small Parameters |
| 45L7R122 T/S Parameters |
| Product Dimension Sheet |
| 45L7R12 Dimensions |
| CNC Files |
| L7S-L7R.DXF - for subwoofer hole cutouts |
| SIZE [in, cm]: |
| 12, 30 |
| IMPEDANCE [Ohms]: |
| 2 DVC |
| Recommended Amplifier Power (watts RMS) |
| 600 |
| Peak Power (watts, per ANSI/CTA-2031-A) |
| 1200 |
| SENSITIVITY [dB 1w/1m]: |
| 86.7 |
| MOUNTING DEPTH [in, cm]: |
| 6-7/8, 17.4 |
| MOUNTING DIAMETER [in, cm]: |
| 11-1/16, 28.1 |
| MIN SEALED BOX VOL [cu. ft, L]: |
| .88, 24.92 |
| MAX SEALED BOX VOL [cu. ft, L]: |
| 2, 56.64 |
| MIN VENTED BOX VOL [cu. ft, L]: |
| 1.75, 49.6 |
| MAX VENTED BOX VOL [cu. ft, L]: |
| 3.25, 92 |
| What's in the Box: |
| 1 - 12" Subwoofer, 1 - install manual, 2 - Kicker stickers |
| Warranty |
| When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of ONE (1) YEARS from date of original purchase. - Complete warranty information here. |
The engineers at KICKER HQ designed the L7R to give you more bass than a circular sub, without a larger enclosure. Welcome to the world of square sub perfection!
The L7R 12-Inch Subwoofer works best with 600 watts of recommended power in a sealed or ported enclosure. See below for more details.
