The KICKER CompQ™ Subwoofer delivers on all of the power, capacity and performance of its square counterpart L7™, only utilizing a round basket and cone.
model: 51CWQ154
| Thiele/Small Parameters |
| 51CWQ154 T/S Parameters |
| Product Dimension Sheet |
| 51CWQ15 Dimensions |
| CNC Files |
| Comp6.75-15.DXF - for subwoofer hole cutouts |
| 3D Print Files |
| 52GR15-Spacer-CWQ.STL - 3D-printing of grille spacers |
| Woofer (in, mm) |
| 15, 38 |
| Impedance (Ohms) |
| 4 DVC |
| Recommended Amp Power (watts RMS) |
| 600-1200 |
| Frequency Response (Hz) |
| 18-100 |
| Sensitivity (1W, 1m) |
| 88 |
| Xmax (mm) |
| 23.7 |
| Mounting Depth (in, mm) |
| 8-15/1, 22.6 |
| Mounting Diameter (in, mm) |
| 13-7/8, 35.2 |
|
Sealed Enclosure Specs
|
| Sealed Enclosure Volume Min (cu. ft., L) |
| 1.5, 42.5 |
|
Panel Dimensions for Minimum Sealed Enclosures using 3/4” (1.9cm) thick MDF
|
| Box Volume [ft³, L] |
1.5, 42.5 |
| Panel A [in, cm] |
| 16.5x16.5, 41.9x41.9 |
| Panel B [in, cm] |
| 16.5x11.5, 41.9x29.2 |
| Panel C [in, cm] |
| 15x11.5, 38.1x29.2 |
| Sealed Enclosure Volume Max (cu. ft., L) |
| 6.0, 170 |
| Vented Enclosure Volume Min (cu. ft., L) |
| 3.0, 85 |
| Vented Enclosure Volume Max (cu. ft., L) |
| 6.0, 170 |
| Warranty |
| When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of THREE (3) YEARS from date of original purchase. - Complete warranty information here. |

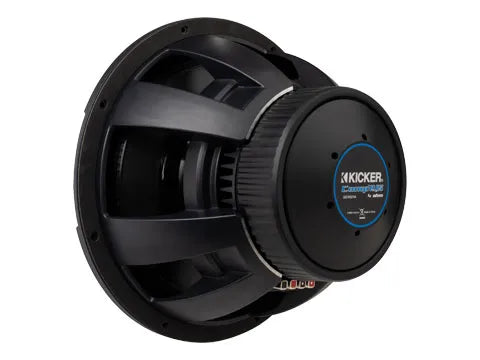

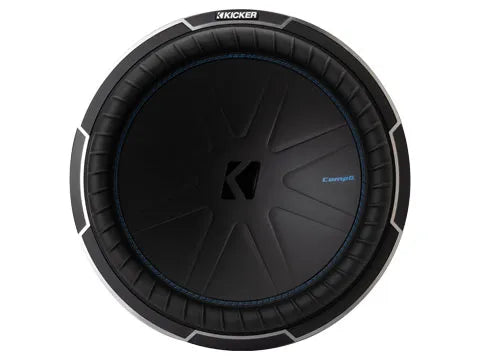

The 15" CompQ 4-Ohm
The CompQ 15" Subwoofer is the pinnacle of our round speaker line, with nearly identical construction and performance as our L7 square subs.
Built for high power handling and extremely accurate bass reproduction, this KICKER sub features Ribbed Santoprene® surrounds and a BlueLace™ large-diameter progressive roll spider for extreme flexibility at any volume level.
The CompQ 15" works best with a sealed or ported enclosure with 1200 watts of recommended power. See below for more details.
