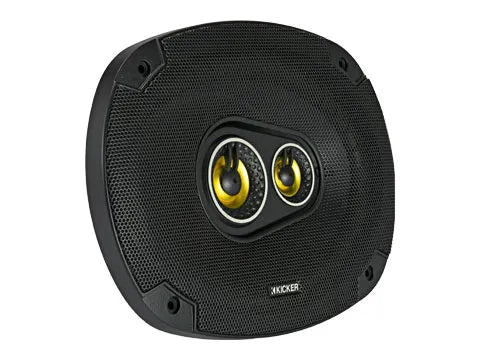

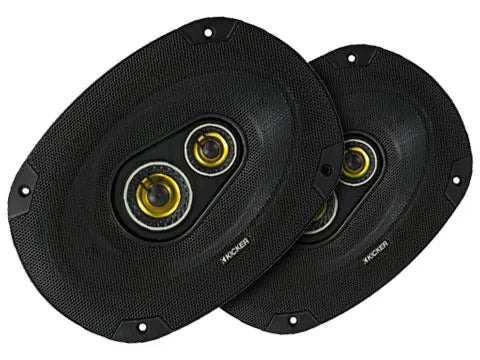

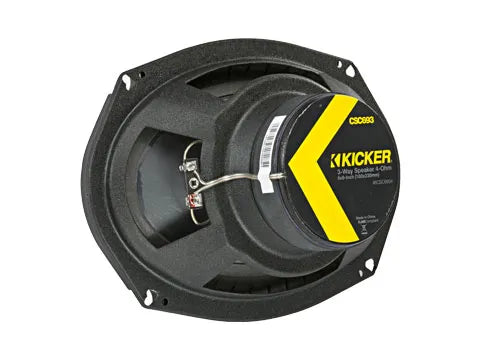

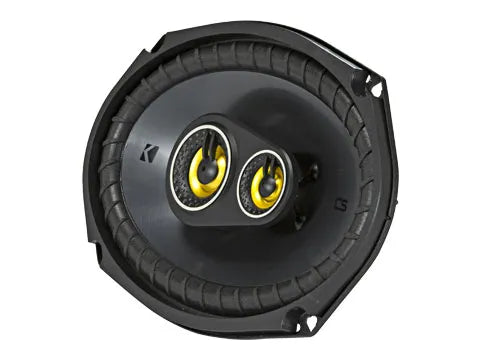

CS Series CSC693

CS Series CSC693

$139.99 $42.00

CS Series CSC693

$139.99 $42.00

The CS Series delivers remarkable performance and ultra-clean bass, utilizing a heavy-duty motor/magnet structure featuring EVC™ (Extended Voice Coil) technology not found in stock speakers. They use polypropylene cones with tough, ribbed, UV-treated surrounds for precise linear excursion and reliability.

Speaker Design
3 - way
Woofer Size [ in, mm ]
6x9, 160x230
Mid Size | in [mm]
2, 50
Tweeter Size [ in, mm ]
1/2, 13
DC Resistance [ ohm ]
3.5
Peak Power [ watts, per ANSI/CTA-2031-A ]
450
Recommended Amplifier Power [ watts RMS ]
150
Sensitivity - SPLo [ dB @ 1W, 1m ]
92
Effective Frequency Range [ Hz ]
30-20k
Mounting Hole Diameter [ in, mm ]
5 5/8 x 8 7/16, 143x215
Top Mount Depth [ in, mm ]
3 3/16, 81
Bottom Mount Depth [ in, mm ]
3 11/16, 93
Tweeter Protrusion [ in, mm ]
1/16, 1
Grilles
Yes
Tweeter Magnet Material
Electric Crystal Motor
Tweeter Dome Materia
PEI [polyether imide
Tweeter Design
Balanced dome
Woofer Cone Material
Polypropylene
Woofer Surround Material
Polyester foam
Warranty
When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of TWO (2) YEARS from date of original purchase. - Complete warranty information here.
